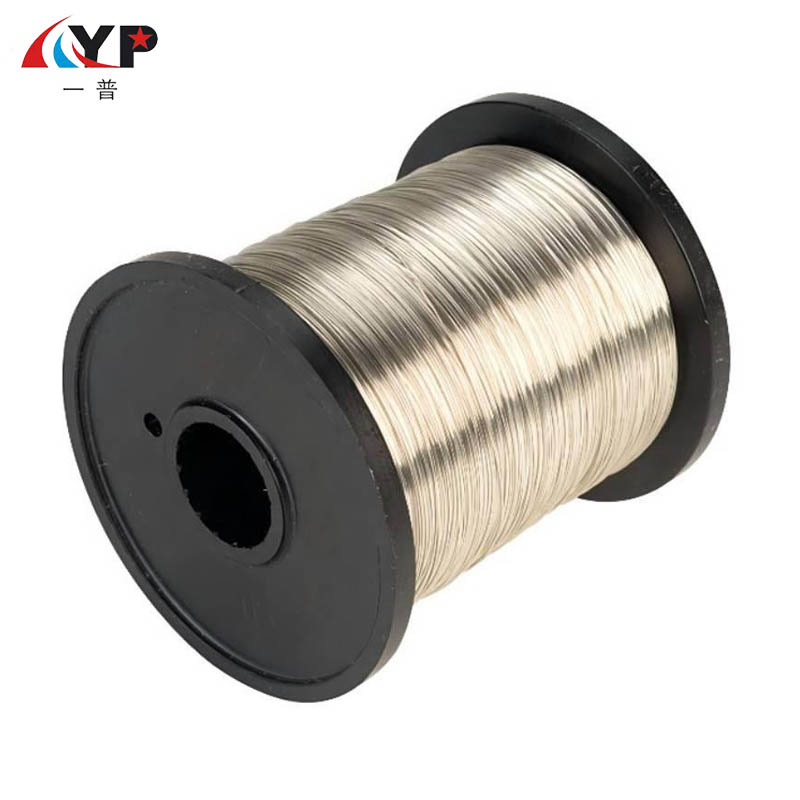

Nickel Clad Copper Wire (NCC wire) is a high-performance conductor engineered by metallurgically bonding a uniform nickel layer onto a pure copper core. This structure combines the superior electrical conductivity of copper with the corrosion resistance, high-temperature endurance, and mechanical strength of nickel. As industries push toward higher efficiency, longer service life, and stability in harsh environments, NCC wire is increasingly used in power electronics, communication systems, battery manufacturing, EV components, aerospace wiring, and high-frequency devices.
Nickel Clad Copper Wire leverages a metallurgical bonding process that eliminates delamination risks while ensuring uniform nickel coverage. Unlike electroplated wires, the nickel layer is thicker, harder, and more stable under elevated temperatures and corrosive atmospheres. This results in a conductor capable of carrying current efficiently while maintaining structural integrity under mechanical stress.
Below is a clear, professional-grade parameter table representing standard specifications:
| Parameter | Specification Range / Details |
|---|---|
| Core Material | High-purity copper (≥ 99.97%) |
| Cladding Material | Nickel (pure or alloy grade per requirements) |
| Nickel Layer Percentage | 15%–40% by volume or as customized |
| Diameter Range | 0.05 mm – 10 mm |
| Electrical Conductivity | 50%–90% IACS depending on nickel ratio |
| Tensile Strength | 150–380 MPa |
| Density | 8.3–8.75 g/cm³ |
| Heat Resistance | Stable up to 800°C (oxidation resistance) |
| Corrosion Performance | Excellent resistance to acids, alkalis, moisture, and oxidation |
| Surface Options | Bright, matte, annealed, hard-drawn |
| Standards | ASTM B355, ASTM B452, IEC/EN electrical conductor standards |
| Typical Applications | EV battery tabs, RF components, high-temperature leads, aerospace, power electronics |
Nickel provides excellent oxidation resistance even at extremely high temperatures. When combined with a copper core, the conductor becomes mechanically durable and resistant to surface degradation under load, vibration, and thermal cycles.
Copper ensures high electrical conductivity and low internal resistance. This allows NCC wire to outperform pure nickel wire in power transmission efficiency while offering significantly higher corrosion resistance than pure copper.
The nickel–copper interface is molecularly fused, meaning the clad layer will not peel or crack during bending, coiling, crimping, soldering, or welding. This reliability is essential for heavy-duty applications where electroplated layers typically fail.
Nickel Clad Copper Wire is engineered not merely to conduct electricity but to maintain stable performance in environments where traditional conductors degrade quickly. The following sections address how the wire improves various aspects of manufacturing and engineering performance.
The nickel cladding allows the wire to operate continuously in elevated-temperature environments such as motors, transformers, heaters, and automotive modules. Nickel oxidation is slow and forms a protective layer that prevents further degradation. This enhances lifespan and reduces failure rates.
Nickel’s natural resistance to chemical attack allows NCC wire to endure exposure to moisture, industrial gases, acids, and salt atmospheres. This makes it ideal for aerospace, marine electronics, and outdoor telecom applications.
The metallurgically bonded nickel shell increases tensile strength while preserving the copper core’s flexibility. This balance allows for precise wire winding, stable solder joints, and reliable performance under continuous vibration.
Reduced electrical loss
Lower heating under heavy current loads
Stable impedance for RF applications
Better fatigue resistance compared with electroplated or pure copper wires
These characteristics are critical for EV components, medical electronics, and micro-electronics systems.
Replacing pure nickel wire with NCC wire significantly reduces material cost while retaining essential properties such as heat resistance and corrosion protection. Manufacturers achieve better cost-performance ratios in large-scale production.
Nickel-plated copper uses a surface-coating electroplating method, which often results in thin and uneven layers. These layers can crack or peel under bending or high-temperature stress. Nickel Clad Copper Wire, by contrast, uses metallurgical bonding that creates a uniform nickel layer fused with the copper core, offering higher durability, thicker protection, improved heat resistance, and longer service life.
Yes, especially when the nickel ratio is optimized. At high frequencies, current flows primarily on the surface (skin effect). The nickel layer provides stable impedance and minimizes signal interference, making NCC wire ideal for antennas, RF connectors, microwave devices, and communication systems exposed to challenging environments.
The global shift toward electrification, miniaturization, and reliability in electronics is driving aggressive adoption of Nickel Clad Copper Wire. Several major future trends are contributing to its rising relevance:
EV battery systems require conductors that withstand continuous heat cycles, high currents, and corrosive electrolytes. NCC wire is becoming a preferred material for battery tabs, connection straps, and charging components.
Aerospace wiring demands materials that maintain conductivity at high altitudes, extreme temperatures, and vibration stress. NCC wire fulfills these requirements while offering a weight advantage over pure nickel wire.
Modern communication systems rely on stable high-frequency performance. The uniform nickel surface layer helps reduce signal distortion and maintains consistency under repeated load and temperature variations.
Solar installations, wind power controls, and battery energy storage systems require corrosion-resistant conductors. NCC wire provides long-term durability under outdoor conditions.
Industries are demanding components that reduce downtime and maintenance costs. NCC wire’s long service life supports predictive maintenance strategies and enhances overall system stability.
Nickel Clad Copper Wire offers a unique combination of electrical conductivity, mechanical strength, heat resistance, and corrosion protection. It meets the rising demands of modern engineering by delivering stability where ordinary conductors fail. Industries such as aerospace, EV manufacturing, energy storage, electronics, and telecommunications increasingly rely on this material because it ensures long-term reliability, reduces maintenance costs, and supports high-performance system designs.
As global markets continue shifting toward more demanding applications, the use of Nickel Clad Copper Wire will expand further, driven by its excellent cost-performance ratio and proven durability. Manufacturers and engineers seeking stable, high-quality conductors benefit from selecting a trusted supplier with strong technical expertise and advanced production processes.
Yipu provides precision-engineered Nickel Clad Copper Wire manufactured under strict quality control standards, offering customized specifications to meet diverse industrial requirements. For detailed product solutions, professional support, or tailored manufacturing options, contact us to discuss how Yipu can enhance your project’s performance and reliability.
