China Press Fusion Welded Laminated Copper Busbar Manufacturer, Supplier, Factory

New energy technologies, such as wind and solar power, are rapidly growing and changing the way we see energy production. As these technologies become more common, new challenges arise. For example, busbars that connect components in renewable energy systems need to be protected from the elements to ensure they function properly and safely. One solution to protect and insulate the busbars is to use heat shrink tubes.

Discover the cost of using new energy copper insulated busbar compared to other options for energy transmission.

Electricity travels through a copper wire as a flow of electric charge, primarily carried by electrons.

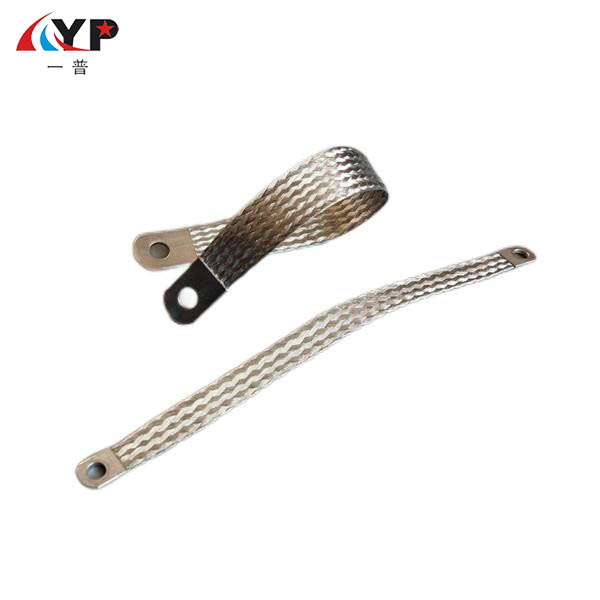

The copper braided wire is braided with T2 copper wire. Its conventional number of ingots is 16/24/32/36/40/48/64/96, and its cross-sectional area is 0.2 mm2 - -300 mm2, conventional monofilament diameters are 0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.15mm etc.

The primary difference between copper wire and copper cable lies in their structure, design, and specific applications.

Compact battery packs typically use hard copper busbars as conductors, and their insulation is usually wrapped in heat shrink sleeves or molded or immersed in molds. However, the internal environment of electric vehicles is complex and there is also a lot of vibration, and soft copper busbars are usually used as conductive connectors. Soft copper busbars are made by laminating multiple layers of copper foil, which have good flexibility and can provide various bending and folding shapes to meet the required space. In order to meet various temperature and insulation requirements, insulation is usually replaced. Another type is FlatWire, also known as flat wire copper busbars, which are mainly used for new energy vehicle battery units and electrical components. They are suitable for charging batteries in automobiles and are also a solution to replace traditional bus connections between the main power supply and distribution equipment.
