There are significant differences in structure, performance, and application scenarios between hard copper stranded wire and soft copper stranded wire, each with its own advantages and disadvantages. Here is a detailed comparison of them:
1. Structure and Manufacturing Process
-Hard copper stranded wire:
-It is made by twisting copper wires with a larger diameter (usually ≥ 1.0mm), and after cold processing and stretching, it has a higher hardness.
-Tight structure, high tensile strength, suitable for high tension environments such as overhead transmission lines, substation busbars, etc.

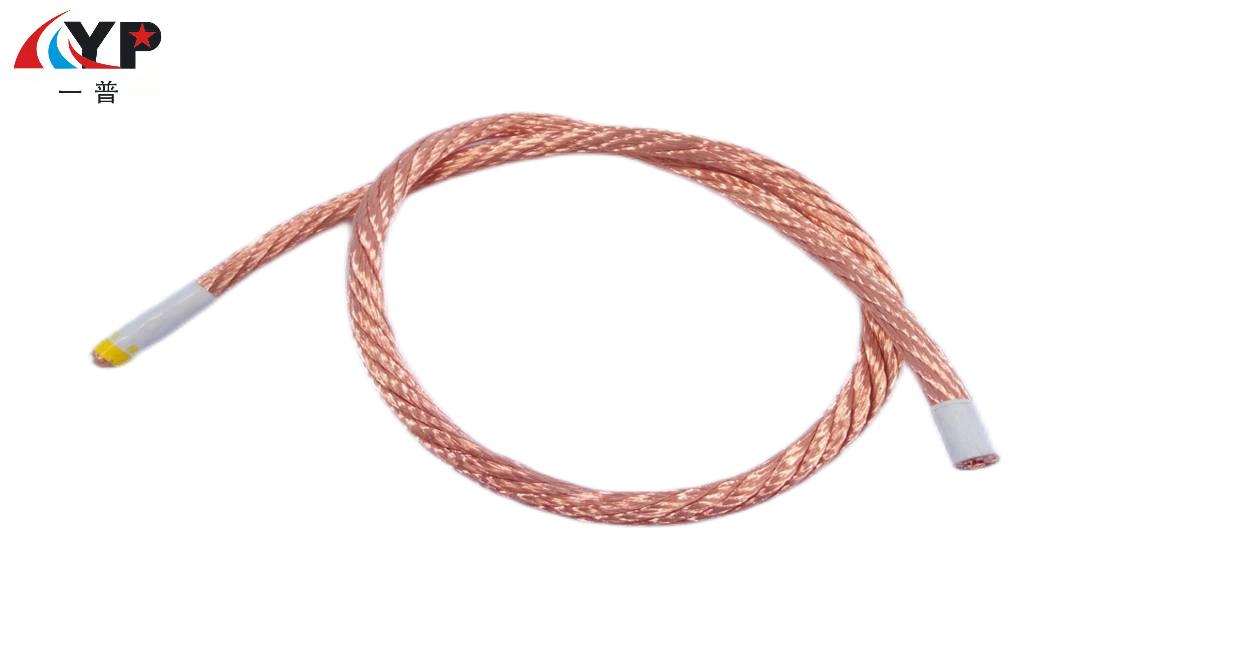

-Made of multiple strands of fine copper wire (single wire diameter 0.04mm~0.2mm) twisted together, soft and elastic.
-Usually annealed to reduce hardness and improve flexibility, it is suitable for occasions that require frequent bending.
2. Characteristics of soft copper stranded wire:
Conductivity: High conductivity, better skin effect, and better high-frequency current transmission
Mechanical strength: Good flexibility, bendable, not easily broken
Heat dissipation: Better heat dissipation (multi strand structure increases surface area)
Corrosion resistance: can be tin plated or coated with a protective layer (such as PVC) to improve corrosion resistance
Installation convenience: flexible wiring and easy threading of pipes
3. Advantages of soft copper stranded wire:
-Good flexibility: suitable for mobile devices, electrical connection wires, and complex wiring environments (such as automotive wiring harnesses and communication equipment).
-Skin effect optimization: High frequency current transmission efficiency is higher, suitable for signal transmission.
-Excellent heat dissipation performance: The multi strand structure increases the heat dissipation area and reduces the risk of overheating.
Disadvantage comparison:
-Hard copper stranded wire: difficult to bend, avoid repeated bending during installation, otherwise it is prone to breakage.
-Soft copper stranded wire: After long-term use, it is prone to local copper wire breakage due to oxidation or fatigue, which affects conductivity.
4. Application
-Power cords for household appliances and internal connections for electronic devices.
-Automotive wiring harnesses, aerospace control systems.
-Communication cables (such as telephone lines, network lines).
5. Suggestions for selection
-Priority should be given to hard copper stranded wire: if high mechanical strength and long-term fixed installation are required (such as household main lines, outdoor power engineering).
-Priority should be given to soft copper stranded wire: if frequent bending, high-frequency signal transmission, or high heat dissipation requirements are needed (such as mobile devices, precision instruments).
