Introducing Busbar Flexible Connectors – The Superior Solution for Electrical Connections
As businesses develop in today's world, there is an increased demand for high-performance electrical connections that can withstand continuously changing technologies and also meet ever-expanding power demands. The need for innovative solutions in electrical connections is always high, and that is where our Busbar Flexible Connectors come in. Our product comes with exceptional features, which make it the most efficient and cost-effective electrical connection solution.
Busbar Flexible Connectors are high-quality copper connectors that are designed to connect various electrical components for efficient power transmission. Our connectors are made of top-quality materials and have been specifically designed to meet the electrical requirements of modern systems. They come with a flexible design that provides greater flexibility for installation into tight and challenging spaces.
1. High-quality Materials
Our busbar connectors are made of high-quality copper, which is a great conductor of electricity compared to other metals such as aluminum or steel. Our connectors undergo rigorous testing to ensure their reliable performance.
2. Superior Conductivity
Our Busbar Flexible Connectors offer superior conductivity, which allows for the efficient transfer of electrical power. With our connectors, there is minimal power loss, which translates to greater efficiency and power savings for your business.
3. Flexibility
Our connectors come with a flexible design that enables them to be used in tight and challenging spaces. The flexibility of our connectors also allows you to create custom connections, making them suitable for a wide range of applications.
4. High Heat Resistance
Our connectors are designed with high heat resistance, which allows them to remain stable even in high-temperature environments. With our connectors, you can expect minimal changes in resistance over extended periods of use, which results in consistent power transfer and fewer performance issues.
5. Cost-Effective
Choosing Busbar Flexible Connectors is a cost-effective solution for your electrical connection needs. Compared to traditional electrical connections that require additional materials and labor expenses, our connectors can be installed quickly and easily. Our connectors are also designed with durability in mind, eliminating costly replacements and downtime due to performance issues.
6. Wide Application Range
Our connectors are suitable for a range of applications, from small electrical systems to large-scale infrastructure. Our connectors are commonly used in power distribution, electrical panel connections, grounding, solar PV installations, and communication networks, among other applications.
Busbar Flexible Connectors are the ideal electrical connection solution for businesses looking for reliable, cost-effective, and efficient electrical connections. Our connectors offer superior conductivity, flexibility, and high-temperature resistance, among other features that make them the ideal choice for a range of applications. With our connectors, you can expect consistent and reliable performance, translating to lower operation costs and greater efficiency. Contact us today to learn more about our Busbar Flexible Connectors and how we can help your business meet its electrical connection needs.
Cross Sectional Area: 0.2mm² - 300mm²
|
Material |
T1 copper (or T2, T3, TU1, TU2 etc.) |
Main Process |
cut,punch,stamp,drill,twist,test |
|
Busbar thickness |
1mm,2mm,3mm or other |
Insulation |
heat shrink sleeve/pvc dip/bare copper |
|
Other dimension |
as to confirmed drawing |
Surface treatment |
Bare copper or tinned plated |
|
Insulation |
heat shrink sleeve/pvc dip/bare copper |
Size |
As customer’s request |
|
Delivery |
5-7days |
Color |
Red or white |
|
OEM |
custom all types of bus bars |
Drawing |
customized design is acceptable. |
|
Plating |
tin/nickle/silver/others |
Advantages |
Professional staff and designer with many years experience |
|
Warranty |
20 years |
Features |
Pure copper wire99.9% |
Packing Modes: in rolls, on spools or wooden drums
TZ-15 TZX-15
|
Section mm' |
Structure |
Size mm |
Calculated weight |
||
|
Standard |
Calculated |
No.of strands x No.of wire x layers/ single wire diameter (mm) |
Width |
Thickness for reference |
kg/km |
|
Nominal Cross Section (mm' ) |
Construction No.of strands x No.of wire x layers/single wire diameter(mm) |
Width |
Thickness (mm) |
Calculated Weight (kg/km) |
Nominal Cross Section (mm') |
|
2 |
2.12 |
24x5x1/0.15 |
5.0 |
1.0 |
21 |
|
2.5 |
2.54 |
25x6x 1/0.15 |
6.0 |
1.0 |
25.4 |
|
3.5 |
3.18 |
36x6x 1/0.15 |
8.0 |
1.5 |
32 |
|
4 |
4.24 |
24x10x1/0 15 |
7.0 |
1.5 |
43 |
|
6 |
6.36 |
36 X 10 X 1/0 15 |
1 1.0 |
1.5 |
64 |
|
8 |
8.45 |
48 X 10 X 1/0 15 |
13.0 |
1.2 |
85 |
|
10 |
10.60 |
40 X 15 X 1/0 15 |
1 5.0 |
2.0 |
106 |
|
|
10.18 |
48 X 12 X 1/0 15 |
16.0 |
1.5 |
102 |
|
12 |
1 2.72 |
48 X 15 X 1/0 15 |
18.0 |
1.8 |
1 28 |
|
16 |
16.96 |
48x20x 1/015 |
22.0 |
2.0 |
1 70 |
|
20 |
21.20 |
48x25x 1/015 |
25.0 |
2.0 |
212 |
|
25 |
25.45 |
48x30x 1/015 |
28.0 |
3.0 |
254 |
|
|
25.45 |
48x15x2/0 15 |
20.0 |
3.5 |
254 |
|
35 |
33.93 |
64x30x 1/015 |
40.0 |
2.2 |
340 |
|
|
33.93 |
48 X 20 X 2/0 1 5 |
26.0 |
3.2 |
340 |
|
50 |
50.87 |
65x45x 1/0.15 |
50.0 |
3.0 |
510 |
|
|
50.87 |
48 X 30 X 2/0.1 5 |
30.0 |
3.2 |
510 |
|
|
50.89 |
48 X 20 X 3/0.15 |
28.0 |
4.8 |
510 |
|
75 |
76.34 |
96x45x 1/0.15 |
32.0 |
3.5 |
765 |
|
|
76.34 |
48 X 30 X 3/0.15 |
36.0 |
5.0 |
765 |
|
95 |
95.00 |
48 X 28 X 4/0.15 |
35.0 |
6.0 |
950 |
|
100 |
100.09 |
96x59x 1/0.15 |
80.0 |
4.0 |
1000 |
|
120 |
127.23 |
48 X 30 X 5/0.15 |
42.0 |
7.0 |
1272 |

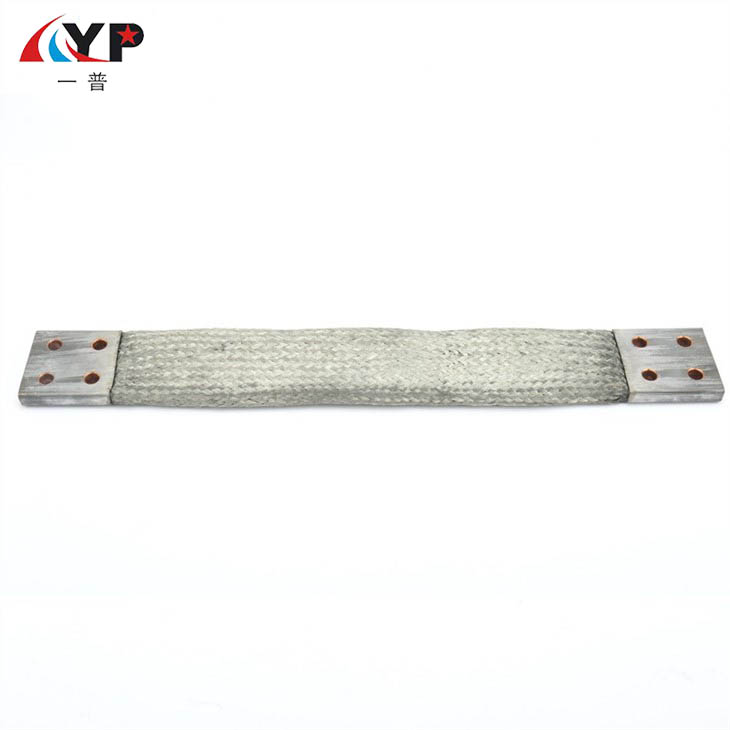

The busbar flexible connector knits as belt by oxygen-free copper wire, and both ends are pressed by oxygen-free copper pipe. The product has shake-resistance, strong electrical conductivity, and widely used in high voltage electrical appliances and high voltage bus soft connection. Our products have passed ISO9001 quality system.
ZHEJIANG YIPU METAL MANUFACTURING CO., LTD. not only has the excellent copper braided wires and copper stranded wires, but also has the unique concept. We have in-house rapid prototyping equipment, so we can provide a proof of concept within days – not weeks or months!
Q: Can I only buy some spare parts from you?
A: Yes, it is ok. We also sell our spare parts separately. But the price will be little higher then the full complete items.
Q: Do you have MOQ limit of the products?
A: We didn't have the MOQ limit, one piece is ok and we can sell to you by express. But the more quantity, the cheaper price.
● We have strict quality control measures in place to ensure the consistent high quality of our Flexible Copper Braided Connectors.
● In the rapid development of China's industry and the great industry of continuous strength, the burning passion, sweat and innovative wisdom of our staff.
● Our factory uses eco-friendly materials and practices to produce our Flexible Copper Braided Connectors, reducing our environmental impact.
● Technological innovation is the profit source of manufacturing enterprises, and dynamic technological innovation ability is a significant indicator of enterprise technological strength.
● Our commitment to innovation and continuous improvement enables us to deliver customized solutions that meet our customers' unique requirements.
● We believe that a reasonable and efficient workflow can effectively ensure the improvement of human resources and strive to do better without the best.
● We take pride in offering a wide range of top-quality Flexible Copper Braided Connectors to meet our customers' specific needs.
● Our Busbar Flexible Connectors have been widely recognized by customers as soon as they come out, and our market share has increased rapidly.
● Our experienced sales team is always ready to provide you with excellent customer service and technical expertise.
● We always provide customers with professional and efficient satisfactory service with excellent quality of Busbar Flexible Connectors , and hope to become the preferred partner of more enterprises.
